P. 10

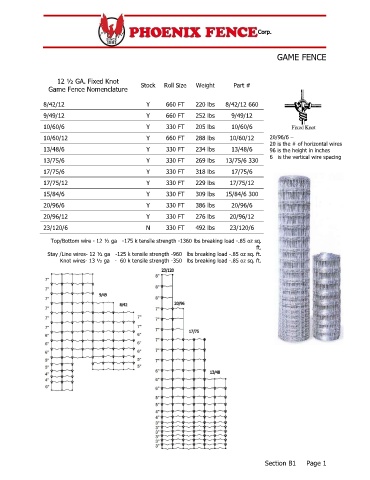

GAME FENCE



                    12 ½ GA. Fixed Knot         Stock  Roll Size  Weight      Part #
                 Game Fence Nomenclature

               8/42/12                           Y      660 FT    220 lbs   8/42/12 660
               9/49/12                           Y      660 FT    252 lbs     9/49/12
               10/60/6                           Y      330 FT    205 lbs     10/60/6

               10/60/12                          Y      660 FT    288 lbs    10/60/12     20/96/6 –
                                                                                          20 is the # of horizontal wires
               13/48/6                           Y      330 FT    234 lbs     13/48/6     96 is the height in inches
                                                                                          6 is the vertical wire spacing
               13/75/6                           Y      330 FT    269 lbs   13/75/6 330
               17/75/6                           Y      330 FT    318 lbs     17/75/6
               17/75/12                          Y      330 FT    229 lbs    17/75/12
               15/84/6                           Y      330 FT    309 lbs   15/84/6 300

               20/96/6                           Y      330 FT    386 lbs     20/96/6
               20/96/12                          Y      330 FT    276 lbs    20/96/12
               23/120/6                          N      330 FT    492 lbs    23/120/6

                  Top/Bottom wire - 12 ½ ga -175 k tensile strength -1360 lbs breaking load -.85 oz sq.
                                                                                      ft.
                 Stay /Line wires- 12 ½ ga -125 k tensile strength -9600 lbs breaking load -.85 oz sq. ft.
                     Knot wires- 13 ½ ga - 60 k tensile strength -3500 lbs breaking load -.85 oz sq. ft.








































                                                                                         Section B1   Page 1
