P. 11

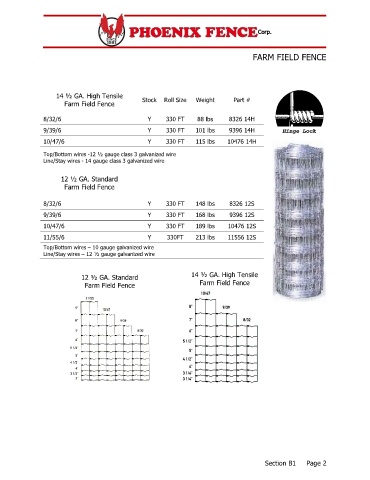

TREE ISLAND FARM FIELD FENCE

                         12 ½ GA. STANDARD FARM FIELD FENCE

 Style    Roll Size        Rolls Per  Weight           Part #
                              Skid
8/32/6
9/39/6             330 FT         9   148 lbs          8326 12S
10/47/6
11/55/6            330 FT         9   168 lbs          9396 12S

                   330 FT         9   189 lbs         10476 12S

                   330 FT         9   213 lbs         11556 12S

10/47/6 – 10 is the # of horizontal wires /47 is the height in inches /6 is the vertical wire spacing

                         *Top and bottom wires are made out of 10 ga galvanized wire.
                         *Intermediate line wires are made out of 12 ½ ga galvanized wire.
                         *Stay wires are made out of 12 ½ ga galvanized wire.

                         MISCELLANEOUS FABRICS

NON-CLIMBABLE WELDED LAWN FENCE - GALVANIZED                            12 ½ GA.

Height    Roll Size        # Per     Lbs. Per  Part #                Section B
36" High     100'          Skid         Roll    36 LF                   Page 3
                                       74 lbs
                              9                                      1/6/2016

48" High           100'    9          98 lbs   48 LF

60" High           100'    9         122 lbs   60 LF

72" High           100'    9         146 lbs   72 LF

- 12½ Ga. Wire                       - Tension Curves to keep tight
- Class 3 coating                    - 2” x 4” openings
