P. 4

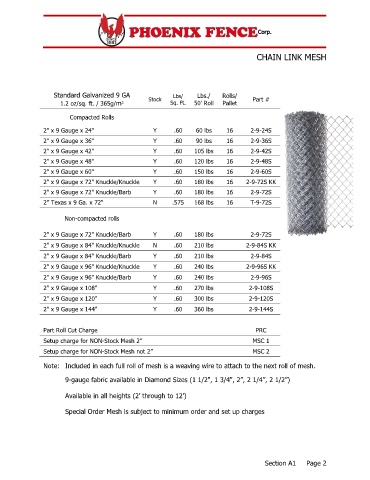

CHAIN LINK MESH






                   Standard Galvanized 9 GA       Stock   Lbs/    Lbs./    Rolls/
                     1.2 oz/sq. ft. / 365g/m²            Sq. Ft.  50' Roll  Pallet   Part #

                        Compacted Rolls

               2" x 9 Gauge x 24"                   Y      .60    60 lbs    16      2-9-24S
               2" x 9 Gauge x 36"                   Y      .60    90 lbs    16      2-9-36S
               2" x 9 Gauge x 42"                   Y      .60   105 lbs    16      2-9-42S
               2" x 9 Gauge x 48"                   Y      .60   120 lbs    16      2-9-48S

               2" x 9 Gauge x 60"                   Y      .60   150 lbs    16      2-9-60S
               2" x 9 Gauge x 72" Knuckle/Knuckle   Y      .60   180 lbs    16    2-9-72S KK
               2" x 9 Gauge x 72" Knuckle/Barb      Y      .60   180 lbs    16      2-9-72S
               2” Texas x 9 Ga. x 72"               N     .575   168 lbs    16      T-9-72S

                      Non-compacted rolls


               2" x 9 Gauge x 72" Knuckle/Barb      Y      .60   180 lbs            2-9-72S
               2" x 9 Gauge x 84" Knuckle/Knuckle   N      .60   210 lbs          2-9-84S KK
               2" x 9 Gauge x 84" Knuckle/Barb      Y      .60   210 lbs            2-9-84S
               2" x 9 Gauge x 96" Knuckle/Knuckle   Y      .60   240 lbs          2-9-96S KK
               2" x 9 Gauge x 96" Knuckle/Barb      Y      .60   240 lbs            2-9-96S

               2" x 9 Gauge x 108"                  Y      .60   270 lbs           2-9-108S
               2" x 9 Gauge x 120"                  Y      .60   300 lbs           2-9-120S
               2" x 9 Gauge x 144"                  Y      .60   360 lbs           2-9-144S


               Part Roll Cut Charge                                                   PRC

               Setup charge for NON-Stock Mesh 2”                                    MSC 1
               Setup charge for NON-Stock Mesh not 2”                                MSC 2

               Note: Included in each full roll of mesh is a weaving wire to attach to the next roll of mesh.
                       9-gauge fabric available in Diamond Sizes (1 1/2", 1 3/4", 2”, 2 1/4”, 2 1/2”)


                       Available in all heights (2’ through to 12’)

                       Special Order Mesh is subject to minimum order and set up charges









                                                                                         Section A1   Page 2
