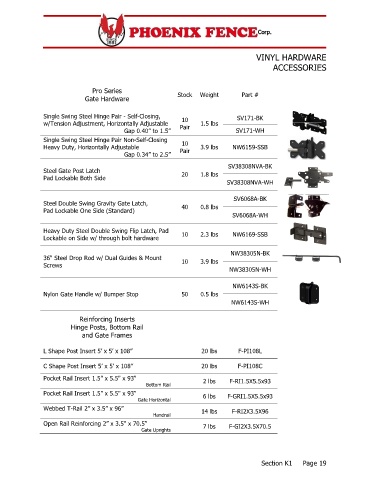

Page 154 - Phoenix Fence Catalouge

VINYL HARDWARE
ACCESSORIES

Pro Series Stock Weight Part #
Gate Hardware

Single Swing Steel Hinge Pair - Self-Closing, 10 SV171-BK
w/Tension Adjustment, Horizontally Adjustable Pair 1.5 lbs
Gap 0.40” to 1.5” SV171-WH
Single Swing Steel Hinge Pair Non-Self-Closing 10
Heavy Duty, Horizontally Adjustable Pair 3.9 lbs NW6159-SSB
Gap 0.34” to 2.5”

SV38308NVA-BK
Steel Gate Post Latch 20 1.8 lbs
Pad Lockable Both Side
SV38308NVA-WH

SV6068A-BK
Steel Double Swing Gravity Gate Latch, 40 0.8 lbs
Pad Lockable One Side (Standard)
SV6068A-WH

Heavy Duty Steel Double Swing Flip Latch, Pad 10 2.3 lbs NW6169-SSB
Lockable on Side w/ through bolt hardware

NW38305N-BK
36" Steel Drop Rod w/ Dual Guides & Mount 10 3.9 lbs
Screws
NW38305N-WH

NW6143S-BK
Nylon Gate Handle w/ Bumper Stop 50 0.5 lbs
NW6143S-WH

Reinforcing Inserts
Hinge Posts, Bottom Rail
and Gate Frames

L Shape Post Insert 5’ x 5’ x 108” 20 lbs F-PI108L

C Shape Post Insert 5’ x 5’ x 108” 20 lbs F-PI108C
Pocket Rail Insert 1.5” x 5.5" x 93" 2 lbs F-RI1.5X5.5x93
Bottom Rail
Pocket Rail Insert 1.5” x 5.5" x 93" 6 lbs F-GRI1.5X5.5x93
Gate Horizontal
Webbed T-Rail 2” x 3.5” x 96” 14 lbs F-RI2X3.5X96
Handrail
Open Rail Reinforcing 2” x 3.5" x 70.5" 7 lbs F-GI2X3.5X70.5
Gate Uprights

Section K1 Page 19
