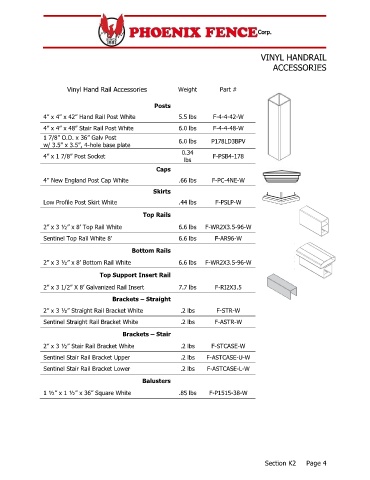

Page 159 - Phoenix Fence Catalouge
P. 159
VINYL HANDRAIL
ACCESSORIES
Vinyl Hand Rail Accessories Weight Part #
Posts
4” x 4” x 42” Hand Rail Post White 5.5 lbs F-4-4-42-W
4” x 4” x 48” Stair Rail Post White 6.0 lbs F-4-4-48-W
1 7/8” O.D. x 36” Galv Post 6.0 lbs P178LD3BPV
w/ 3.5” x 3.5”, 4-hole base plate
0.34
4” x 1 7/8” Post Socket F-PSB4-178
lbs
Caps
4” New England Post Cap White .66 lbs F-PC-4NE-W
Skirts
Low Profile Post Skirt White .44 lbs F-PSLP-W
Top Rails
2” x 3 ½” x 8’ Top Rail White 6.6 lbs F-WR2X3.5-96-W
Sentinel Top Rail White 8’ 6.6 lbs F-AR96-W
Bottom Rails
2” x 3 ½” x 8’ Bottom Rail White 6.6 lbs F-WR2X3.5-96-W
Top Support Insert Rail
2” x 3 1/2” X 8’ Galvanized Rail Insert 7.7 lbs F-RI2X3.5
Brackets – Straight
2” x 3 ½” Straight Rail Bracket White .2 lbs F-STR-W
Sentinel Straight Rail Bracket White .2 lbs F-ASTR-W
Brackets – Stair
2” x 3 ½” Stair Rail Bracket White .2 lbs F-STCASE-W
Sentinel Stair Rail Bracket Upper .2 lbs F-ASTCASE-U-W
Sentinel Stair Rail Bracket Lower .2 lbs F-ASTCASE-L-W
Balusters
1 ½” x 1 ½” x 36” Square White .85 lbs F-P1515-38-W
Section K2 Page 4
