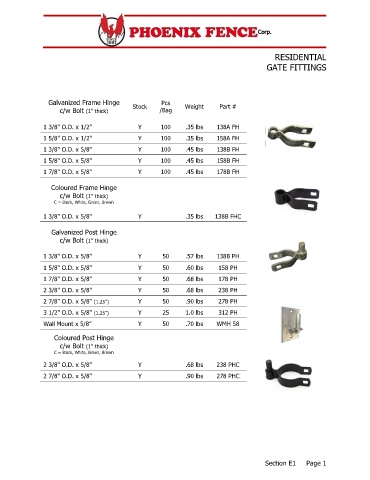

Page 44 - Phoenix Fence Catalouge

RESIDENTIAL
GATE FITTINGS

Galvanized Frame Hinge Stock Pcs Weight Part #
c/w Bolt (1” thick) /Bag

1 3/8" O.D. x 1/2" Y 100 .35 lbs 138A FH

1 5/8" O.D. x 1/2" Y 100 .35 lbs 158A FH
1 3/8" O.D. x 5/8" Y 100 .45 lbs 138B FH
1 5/8" O.D. x 5/8" Y 100 .45 lbs 158B FH

1 7/8" O.D. x 5/8" Y 100 .45 lbs 178B FH

Coloured Frame Hinge
c/w Bolt (1” thick)
C = Black, White, Green, Brown

1 3/8" O.D. x 5/8" Y .35 lbs 138B FHC

Galvanized Post Hinge
c/w Bolt (1” thick)

1 3/8" O.D. x 5/8" Y 50 .57 lbs 138B PH
1 5/8" O.D. x 5/8" Y 50 .60 lbs 158 PH

1 7/8" O.D. x 5/8" Y 50 .68 lbs 178 PH
2 3/8" O.D. x 5/8" Y 50 .68 lbs 238 PH

2 7/8" O.D. x 5/8" (1.25”) Y 50 .90 lbs 278 PH
3 1/2” O.D. x 5/8" (1.25”) Y 25 1.0 lbs 312 PH
Wall Mount x 5/8” Y 50 .70 lbs WMH 58

Coloured Post Hinge
c/w Bolt (1” thick)
C = Black, White, Green, Brown
2 3/8" O.D. x 5/8" Y .68 lbs 238 PHC

2 7/8" O.D. x 5/8" Y .90 lbs 278 PHC

Section E1 Page 1
