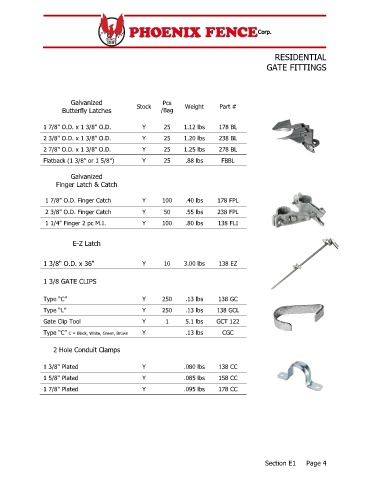

Page 47 - Phoenix Fence Catalouge

RESIDENTIAL
GATE FITTINGS

Galvanized Stock Pcs Weight Part #
Butterfly Latches /Bag

1 7/8" O.D. x 1 3/8" O.D. Y 25 1.12 lbs 178 BL

2 3/8" O.D. x 1 3/8" O.D. Y 25 1.20 lbs 238 BL
2 7/8" O.D. x 1 3/8" O.D. Y 25 1.25 lbs 278 BL
Flatback (1 3/8" or 1 5/8") Y 25 .88 lbs FBBL

Galvanized
Finger Latch & Catch

1 7/8" O.D. Finger Catch Y 100 .40 lbs 178 FPL

2 3/8" O.D. Finger Catch Y 50 .55 lbs 238 FPL
1 1/4" Finger 2 pc M.I. Y 100 .80 lbs 138 FLI

E-Z Latch

1 3/8" O.D. x 36" Y 10 3.00 lbs 138 EZ

1 3/8 GATE CLIPS

Type “C” Y 250 .13 lbs 138 GC
Type “L” Y 250 .13 lbs 138 GCL

Gate Clip Tool Y 1 5.1 lbs GCT 122
Type “C” C = Black, White, Green, Brown Y .13 lbs CGC

2 Hole Conduit Clamps

1 3/8" Plated Y .080 lbs 138 CC
1 5/8" Plated Y .085 lbs 158 CC

1 7/8" Plated Y .095 lbs 178 CC

Section E1 Page 4
