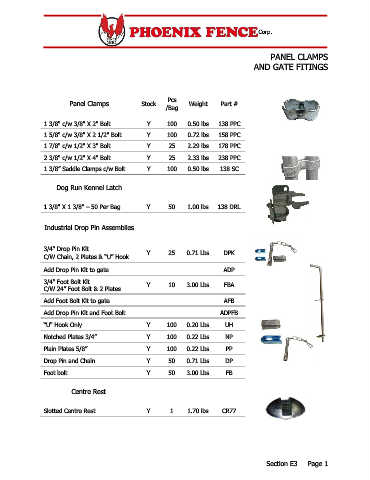

Page 56 - Phoenix Fence Catalouge

PANEL CLAMPS
AND GATE FITINGS

Panel Clamps Stock Pcs Weight Part #
/Bag

1 3/8" c/w 3/8" X 2" Bolt Y 100 0.50 lbs 138 PPC
1 5/8" c/w 3/8" X 2 1/2" Bolt Y 100 0.72 lbs 158 PPC
1 7/8" c/w 1/2" X 3" Bolt Y 25 2.29 lbs 178 PPC

2 3/8" c/w 1/2" X 4" Bolt Y 25 2.33 lbs 238 PPC
1 3/8” Saddle Clamps c/w Bolt Y 100 0.50 lbs 138 SC

Dog Run Kennel Latch

1 3/8" X 1 3/8" – 50 Per Bag Y 50 1.00 lbs 138 DRL

Industrial Drop Pin Assemblies

3/4" Drop Pin Kit Y 25 0.71 Lbs DPK
C/W Chain, 2 Plates & “U” Hook

Add Drop Pin Kit to gate ADP
3/4" Foot Bolt Kit Y 10 3.00 Lbs FBA
C/W 24” Foot Bolt & 2 Plates
Add Foot Bolt Kit to gate AFB

Add Drop Pin Kit and Foot Bolt ADPFB
“U" Hook Only Y 100 0.20 Lbs UH

Notched Plates 3/4” Y 100 0.22 Lbs NP
Plain Plates 5/8” Y 100 0.22 Lbs PP

Drop Pin and Chain Y 50 0.71 Lbs DP
Foot bolt Y 50 3.00 Lbs FB

Centre Rest

Slotted Centre Rest Y 1 1.70 lbs CR77

Section E3 Page 1
