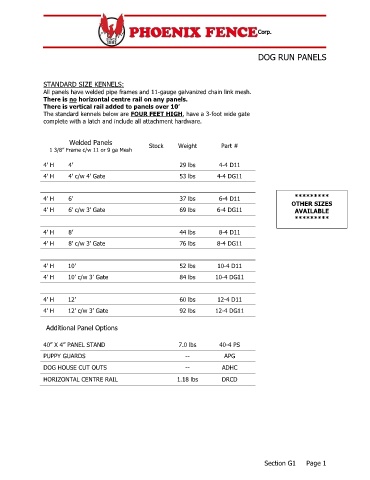

DOG RUN PANELS

STANDARD SIZE KENNELS:
All panels have welded pipe frames and 11-gauge galvanized chain link mesh.
There is no horizontal centre rail on any panels.
There is vertical rail added to panels over 10’
The standard kennels below are FOUR FEET HIGH, have a 3-foot wide gate
complete with a latch and include all attachment hardware.

Welded Panels Stock Weight Part #
1 3/8” Frame c/w 11 or 9 ga Mesh

4’ H 4’ 29 lbs 4-4 D11

4’ H 4’ c/w 4’ Gate 53 lbs 4-4 DG11

4’ H 6’ 37 lbs 6-4 D11 *********
OTHER SIZES
4’ H 6’ c/w 3’ Gate 69 lbs 6-4 DG11 AVAILABLE
*********

4’ H 8’ 44 lbs 8-4 D11
4’ H 8’ c/w 3’ Gate 76 lbs 8-4 DG11

4’ H 10’ 52 lbs 10-4 D11
4’ H 10’ c/w 3’ Gate 84 lbs 10-4 DG11

4’ H 12’ 60 lbs 12-4 D11
4’ H 12’ c/w 3’ Gate 92 lbs 12-4 DG11

Additional Panel Options

40” X 4” PANEL STAND 7.0 lbs 40-4 PS

PUPPY GUARDS -- APG
DOG HOUSE CUT OUTS -- ADHC

HORIZONTAL CENTRE RAIL 1.18 lbs DRCD

Section G1 Page 1
