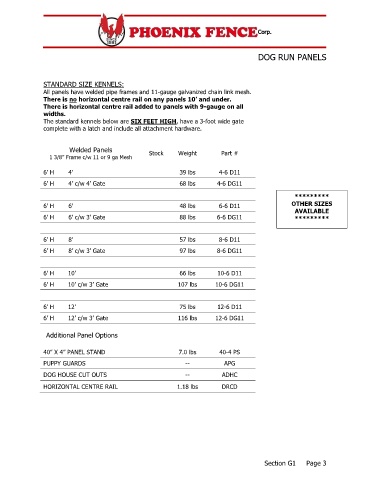

Page 102 - Phoenix Fence Catalouge
P. 102
DOG RUN PANELS
STANDARD SIZE KENNELS:
All panels have welded pipe frames and 11-gauge galvanized chain link mesh.
There is no horizontal centre rail on any panels 10’ and under.
There is horizontal centre rail added to panels with 9-gauge on all
widths.
The standard kennels below are SIX FEET HIGH, have a 3-foot wide gate
complete with a latch and include all attachment hardware.
Welded Panels Stock Weight Part #
1 3/8” Frame c/w 11 or 9 ga Mesh
6’ H 4’ 39 lbs 4-6 D11
6’ H 4’ c/w 4’ Gate 68 lbs 4-6 DG11
*********
6’ H 6’ 48 lbs 6-6 D11 OTHER SIZES
AVAILABLE
6’ H 6’ c/w 3’ Gate 88 lbs 6-6 DG11 *********
6’ H 8’ 57 lbs 8-6 D11
6’ H 8’ c/w 3’ Gate 97 lbs 8-6 DG11
6’ H 10’ 66 lbs 10-6 D11
6’ H 10’ c/w 3’ Gate 107 lbs 10-6 DG11
6’ H 12’ 75 lbs 12-6 D11
6’ H 12’ c/w 3’ Gate 116 lbs 12-6 DG11
Additional Panel Options
40” X 4” PANEL STAND 7.0 lbs 40-4 PS
PUPPY GUARDS -- APG
DOG HOUSE CUT OUTS -- ADHC
HORIZONTAL CENTRE RAIL 1.18 lbs DRCD
Section G1 Page 3
