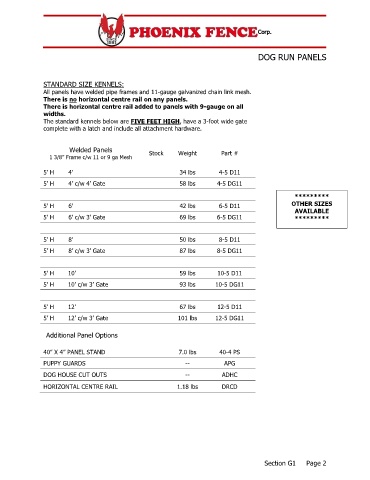

Page 101 - Phoenix Fence Catalouge

DOG RUN PANELS

STANDARD SIZE KENNELS:
All panels have welded pipe frames and 11-gauge galvanized chain link mesh.
There is no horizontal centre rail on any panels.
There is horizontal centre rail added to panels with 9-gauge on all
widths.
The standard kennels below are FIVE FEET HIGH, have a 3-foot wide gate
complete with a latch and include all attachment hardware.

Welded Panels Stock Weight Part #
1 3/8” Frame c/w 11 or 9 ga Mesh

5’ H 4’ 34 lbs 4-5 D11
5’ H 4’ c/w 4’ Gate 58 lbs 4-5 DG11

*********
5’ H 6’ 42 lbs 6-5 D11 OTHER SIZES
AVAILABLE
5’ H 6’ c/w 3’ Gate 69 lbs 6-5 DG11 *********

5’ H 8’ 50 lbs 8-5 D11
5’ H 8’ c/w 3’ Gate 87 lbs 8-5 DG11

5’ H 10’ 59 lbs 10-5 D11
5’ H 10’ c/w 3’ Gate 93 lbs 10-5 DG11

5’ H 12’ 67 lbs 12-5 D11

5’ H 12’ c/w 3’ Gate 101 lbs 12-5 DG11

Additional Panel Options

40” X 4” PANEL STAND 7.0 lbs 40-4 PS
PUPPY GUARDS -- APG
DOG HOUSE CUT OUTS -- ADHC

HORIZONTAL CENTRE RAIL 1.18 lbs DRCD

Section G1 Page 2
