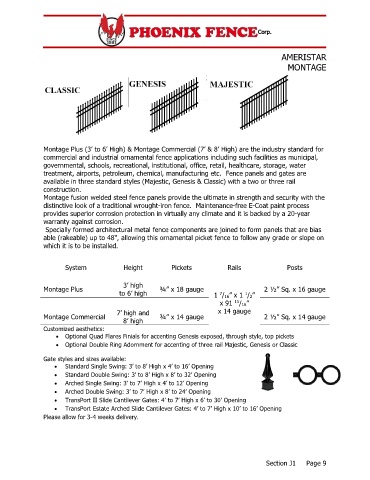

Page 129 - Phoenix Fence Catalouge

AMERISTAR
MONTAGE

Montage Plus (3’ to 6’ High) & Montage Commercial (7’ & 8’ High) are the industry standard for
commercial and industrial ornamental fence applications including such facilities as municipal,
governmental, schools, recreational, institutional, office, retail, healthcare, storage, water
treatment, airports, petroleum, chemical, manufacturing etc. Fence panels and gates are
available in three standard styles (Majestic, Genesis & Classic) with a two or three rail
construction.
Montage fusion welded steel fence panels provide the ultimate in strength and security with the
distinctive look of a traditional wrought-iron fence. Maintenance-free E-Coat paint process
provides superior corrosion protection in virtually any climate and it is backed by a 20-year
warranty against corrosion.
Specially formed architectural metal fence components are joined to form panels that are bias
able (rakeable) up to 48", allowing this ornamental picket fence to follow any grade or slope on
which it is to be installed.

System Height Pickets Rails Posts

3’ high
Montage Plus ¾” x 18 gauge 2 ½” Sq. x 16 gauge
to 6’ high 1 /16” x 1 /2”
7
1
x 91 /16”
15
7’ high and x 14 gauge
Montage Commercial ¾” x 14 gauge 2 ½” Sq. x 14 gauge
8’ high
Customized aesthetics:
 Optional Quad Flares Finials for accenting Genesis exposed, through style, top pickets
 Optional Double Ring Adornment for accenting of three rail Majestic, Genesis or Classic

Gate styles and sizes available:
 Standard Single Swing: 3’ to 8’ High x 4’ to 16’ Opening
 Standard Double Swing: 3’ to 8’ High x 8’ to 32’ Opening
 Arched Single Swing: 3’ to 7’ High x 4’ to 12’ Opening
 Arched Double Swing: 3’ to 7’ High x 8’ to 24’ Opening
 TransPort II Slide Cantilever Gates: 4’ to 7’ High x 6’ to 30’ Opening
 TransPort Estate Arched Slide Cantilever Gates: 4’ to 7’ High x 10’ to 16’ Opening
Please allow for 3-4 weeks delivery.

Section J1 Page 9
