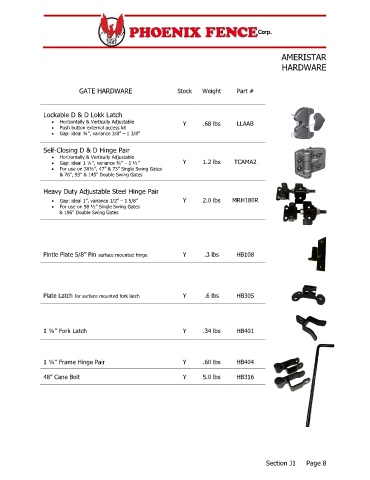

Page 128 - Phoenix Fence Catalouge

AMERISTAR
HARDWARE

GATE HARDWARE Stock Weight Part #

Lockable D & D Lokk Latch
 Horizontally & Vertically Adjustable Y .68 lbs LLAAB
 Push button external access kit
 Gap: ideal ¾”, variance 3/8” – 1 3/8”

Self-Closing D & D Hinge Pair
 Horizontally & Vertically Adjustable
 Gap: ideal 1 ¼”, variance ¾” – 1 ½” Y 1.2 lbs TCAMA2
 For use on 38½”, 47” & 73” Single Swing Gates
& 76”, 93” & 145” Double Swing Gates

Heavy Duty Adjustable Steel Hinge Pair
 Gap: ideal 1”, variance 1/2” – 1 5/8” Y 2.0 lbs MRH180R
 For use on 98 ½” Single Swing Gates
& 196” Double Swing Gates

Pintle Plate 5/8” Pin surface mounted hinge Y .3 lbs HB108

Plate Latch for surface mounted fork latch Y .6 lbs HB305

1 ¼” Fork Latch Y .34 lbs HB401

1 ¼” Frame Hinge Pair Y .60 lbs HB404

48” Cane Bolt Y 5.0 lbs HB316

Section J1 Page 8
