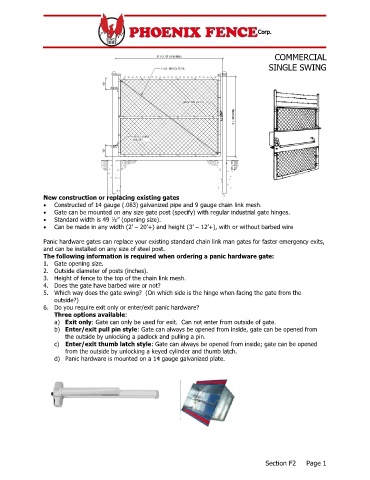

Page 72 - Phoenix Fence Catalouge

COMMERCIAL
SINGLE SWING

New construction or replacing existing gates
 Constructed of 14 gauge (.083) galvanized pipe and 9 gauge chain link mesh.
 Gate can be mounted on any size gate post (specify) with regular industrial gate hinges.
 Standard width is 49 ½” (opening size).
 Can be made in any width (2’ – 20’+) and height (3’ – 12’+), with or without barbed wire

Panic hardware gates can replace your existing standard chain link man gates for faster emergency exits,
and can be installed on any size of steel post.
The following information is required when ordering a panic hardware gate:
1. Gate opening size.
2. Outside diameter of posts (inches).
3. Height of fence to the top of the chain link mesh.
4. Does the gate have barbed wire or not?
5. Which way does the gate swing? (On which side is the hinge when facing the gate from the
outside?)
6. Do you require exit only or enter/exit panic hardware?
Three options available:
a) Exit only: Gate can only be used for exit. Can not enter from outside of gate.
b) Enter/exit pull pin style: Gate can always be opened from inside, gate can be opened from
the outside by unlocking a padlock and pulling a pin.
c) Enter/exit thumb latch style: Gate can always be opened from inside; gate can be opened
from the outside by unlocking a keyed cylinder and thumb latch.
d) Panic hardware is mounted on a 14 gauge galvanized plate.

Section F2 Page 1
