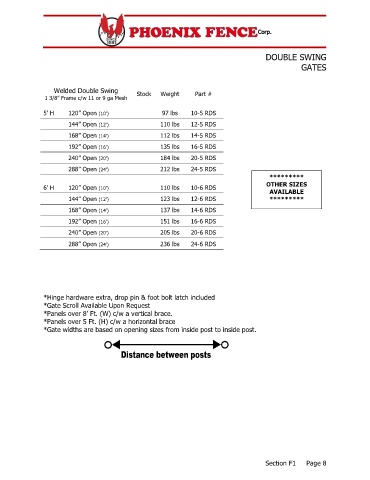

Page 69 - Phoenix Fence Catalouge

DOUBLE SWING
GATES

Welded Double Swing
1 3/8” Frame c/w 11 or 9 ga Mesh Stock Weight Part #
5’ H 120” Open (10’) 97 lbs 10-5 RDS

144” Open (12’) 110 lbs 12-5 RDS
168” Open (14’) 112 lbs 14-5 RDS

192” Open (16’) 135 lbs 16-5 RDS
240” Open (20’) 184 lbs 20-5 RDS
288” Open (24’) 212 lbs 24-5 RDS
*********
6’ H 120” Open (10’) 110 lbs 10-6 RDS OTHER SIZES
AVAILABLE
144” Open (12’) 123 lbs 12-6 RDS *********

168” Open (14’) 137 lbs 14-6 RDS
192” Open (16’) 151 lbs 16-6 RDS
240” Open (20’) 205 lbs 20-6 RDS

288” Open (24’) 236 lbs 24-6 RDS

*Hinge hardware extra, drop pin & foot bolt latch included
*Gate Scroll Available Upon Request
*Panels over 8’ Ft. (W) c/w a vertical brace.
*Panels over 5 Ft. (H) c/w a horizontal brace
*Gate widths are based on opening sizes from inside post to inside post.

Section F1 Page 8
