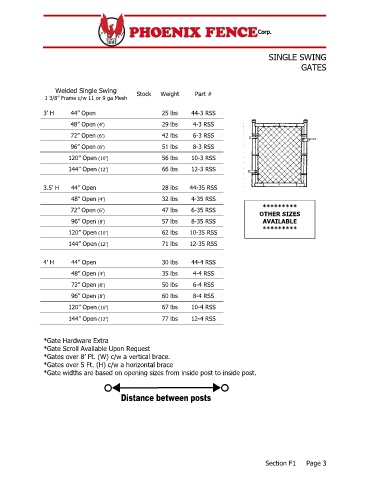

Page 64 - Phoenix Fence Catalouge

SINGLE SWING
GATES

Welded Single Swing
1 3/8” Frame c/w 11 or 9 ga Mesh Stock Weight Part #
3’ H 44” Open 25 lbs 44-3 RSS

48” Open (4’) 29 lbs 4-3 RSS
72” Open (6’) 42 lbs 6-3 RSS

96” Open (8’) 51 lbs 8-3 RSS
120” Open (10’) 56 lbs 10-3 RSS
144” Open (12’) 66 lbs 12-3 RSS

3.5’ H 44” Open 28 lbs 44-35 RSS
48” Open (4’) 32 lbs 4-35 RSS

72” Open (6’) 47 lbs 6-35 RSS *********
OTHER SIZES
96” Open (8’) 57 lbs 8-35 RSS AVAILABLE
*********
120” Open (10’) 62 lbs 10-35 RSS

144” Open (12’) 71 lbs 12-35 RSS

4’ H 44” Open 30 lbs 44-4 RSS

48” Open (4’) 35 lbs 4-4 RSS
72” Open (6’) 50 lbs 6-4 RSS
96” Open (8’) 60 lbs 8-4 RSS

120” Open (10’) 67 lbs 10-4 RSS
144” Open (12’) 77 lbs 12-4 RSS

*Gate Hardware Extra
*Gate Scroll Available Upon Request
*Gates over 8’ Ft. (W) c/w a vertical brace.
*Gates over 5 Ft. (H) c/w a horizontal brace
*Gate widths are based on opening sizes from inside post to inside post.

Section F1 Page 3
