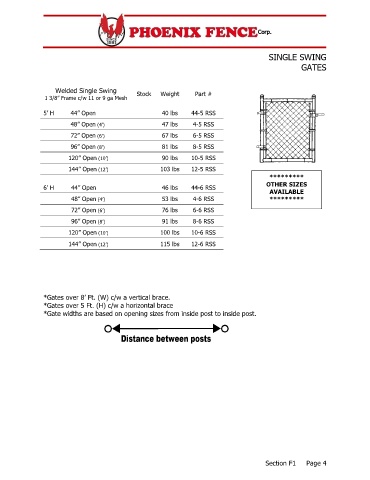

Page 65 - Phoenix Fence Catalouge

SINGLE SWING
GATES

Welded Single Swing
1 3/8” Frame c/w 11 or 9 ga Mesh Stock Weight Part #
5’ H 44” Open 40 lbs 44-5 RSS

48” Open (4’) 47 lbs 4-5 RSS
72” Open (6’) 67 lbs 6-5 RSS

96” Open (8’) 81 lbs 8-5 RSS
120” Open (10’) 90 lbs 10-5 RSS
144” Open (12’) 103 lbs 12-5 RSS
*********
6’ H 44” Open 46 lbs 44-6 RSS OTHER SIZES
AVAILABLE
48” Open (4’) 53 lbs 4-6 RSS *********

72” Open (6’) 76 lbs 6-6 RSS
96” Open (8’) 91 lbs 8-6 RSS
120” Open (10’) 100 lbs 10-6 RSS

144” Open (12’) 115 lbs 12-6 RSS

*Gates over 8’ Ft. (W) c/w a vertical brace.
*Gates over 5 Ft. (H) c/w a horizontal brace
*Gate widths are based on opening sizes from inside post to inside post.

Section F1 Page 4
