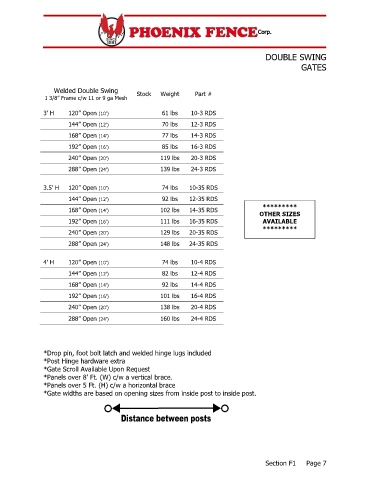

Page 68 - Phoenix Fence Catalouge

DOUBLE SWING
GATES

Welded Double Swing
1 3/8” Frame c/w 11 or 9 ga Mesh Stock Weight Part #
3’ H 120” Open (10’) 61 lbs 10-3 RDS

144” Open (12’) 70 lbs 12-3 RDS
168” Open (14’) 77 lbs 14-3 RDS

192” Open (16’) 85 lbs 16-3 RDS
240” Open (20’) 119 lbs 20-3 RDS
288” Open (24’) 139 lbs 24-3 RDS

3.5’ H 120” Open (10’) 74 lbs 10-35 RDS
144” Open (12’) 92 lbs 12-35 RDS

168” Open (14’) 102 lbs 14-35 RDS *********
OTHER SIZES
192” Open (16’) 111 lbs 16-35 RDS AVAILABLE
*********
240” Open (20’) 129 lbs 20-35 RDS

288” Open (24’) 148 lbs 24-35 RDS

4’ H 120” Open (10’) 74 lbs 10-4 RDS

144” Open (12’) 82 lbs 12-4 RDS
168” Open (14’) 92 lbs 14-4 RDS
192” Open (16’) 101 lbs 16-4 RDS

240” Open (20’) 138 lbs 20-4 RDS
288” Open (24’) 160 lbs 24-4 RDS

*Drop pin, foot bolt latch and welded hinge lugs included
*Post Hinge hardware extra
*Gate Scroll Available Upon Request
*Panels over 8’ Ft. (W) c/w a vertical brace.
*Panels over 5 Ft. (H) c/w a horizontal brace
*Gate widths are based on opening sizes from inside post to inside post.

Section F1 Page 7
