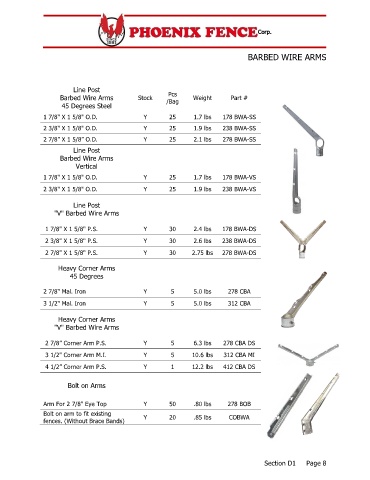

Page 36 - Phoenix Fence Catalouge

BARBED WIRE ARMS

Line Post
Pcs
Barbed Wire Arms Stock /Bag Weight Part #
45 Degrees Steel
1 7/8" X 1 5/8" O.D. Y 25 1.7 lbs 178 BWA-SS

2 3/8" X 1 5/8" O.D. Y 25 1.9 lbs 238 BWA-SS
2 7/8” X 1 5/8” O.D. Y 25 2.1 lbs 278 BWA-SS
Line Post
Barbed Wire Arms
Vertical

1 7/8" X 1 5/8" O.D. Y 25 1.7 lbs 178 BWA-VS
2 3/8" X 1 5/8" O.D. Y 25 1.9 lbs 238 BWA-VS

Line Post
"V" Barbed Wire Arms

1 7/8" X 1 5/8" P.S. Y 30 2.4 lbs 178 BWA-DS

2 3/8" X 1 5/8" P.S. Y 30 2.6 lbs 238 BWA-DS
2 7/8" X 1 5/8" P.S. Y 30 2.75 lbs 278 BWA-DS

Heavy Corner Arms
45 Degrees

2 7/8" Mal. Iron Y 5 5.0 lbs 278 CBA

3 1/2" Mal. Iron Y 5 5.0 lbs 312 CBA

Heavy Corner Arms
"V" Barbed Wire Arms

2 7/8” Corner Arm P.S. Y 5 6.3 lbs 278 CBA DS
3 1/2" Corner Arm M.I. Y 5 10.6 lbs 312 CBA MI

4 1/2” Corner Arm P.S. Y 1 12.2 lbs 412 CBA DS

Bolt on Arms

Arm For 2 7/8" Eye Top Y 50 .80 lbs 278 BOB
Bolt on arm to fit existing Y 20 .85 lbs COBWA
fences. (Without Brace Bands)

Section D1 Page 8
