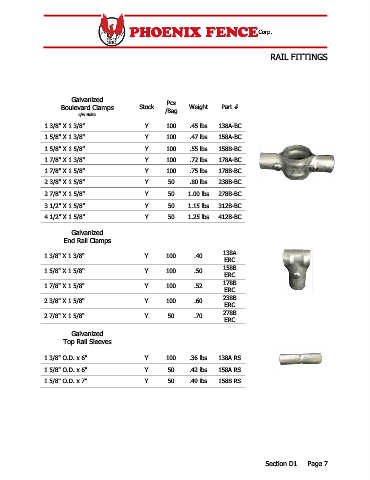

Page 35 - Phoenix Fence Catalouge

RAIL FITTINGS

Galvanized Pcs
Boulevard Clamps Stock /Bag Weight Part #
c/w Bolts
1 3/8" X 1 3/8" Y 100 .45 lbs 138A-BC

1 5/8" X 1 3/8" Y 100 .47 lbs 158A-BC
1 5/8" X 1 5/8" Y 100 .55 lbs 158B-BC
1 7/8" X 1 3/8" Y 100 .72 lbs 178A-BC
1 7/8" X 1 5/8" Y 100 .75 lbs 178B-BC

2 3/8" X 1 5/8" Y 50 .80 lbs 238B-BC
2 7/8" X 1 5/8" Y 50 1.00 lbs 278B-BC

3 1/2” X 1 5/8” Y 50 1.15 lbs 312B-BC
4 1/2” X 1 5/8” Y 50 1.25 lbs 412B-BC

Galvanized
End Rail Clamps
138A
1 3/8" X 1 3/8" Y 100 .40
ERC
158B
1 5/8" X 1 5/8" Y 100 .50
ERC
178B
1 7/8" X 1 5/8" Y 100 .52
ERC
238B
2 3/8" X 1 5/8" Y 100 .60
ERC
278B
2 7/8" X 1 5/8" Y 50 .70
ERC
Galvanized
Top Rail Sleeves

1 3/8" O.D. x 6" Y 100 .36 lbs 138A RS

1 5/8" O.D. x 6" Y 50 .42 lbs 158A RS
1 5/8" O.D. x 7" Y 50 .49 lbs 158B RS

Section D1 Page 7
