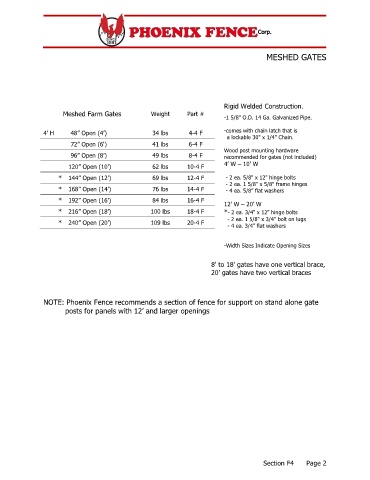

MESHED GATES

Rigid Welded Construction.
Meshed Farm Gates Weight Part #
-1 5/8" O.D. 14 Ga. Galvanized Pipe.

4’ H 48” Open (4’) 34 lbs 4-4 F -comes with chain latch that is
a lockable 30" x 1/4" Chain.
72” Open (6‘) 41 lbs 6-4 F
Wood post mounting hardware
96” Open (8’) 49 lbs 8-4 F recommended for gates (not included)

120” Open (10’) 62 lbs 10-4 F 4’ W – 10’ W
* 144” Open (12’) 69 lbs 12-4 F - 2 ea. 5/8" x 12" hinge bolts
- 2 ea. 1 5/8" x 5/8" frame hinges
* 168” Open (14’) 76 lbs 14-4 F - 4 ea. 5/8” flat washers
* 192” Open (16’) 84 lbs 16-4 F
12’ W – 20’ W
* 216” Open (18’) 100 lbs 18-4 F *- 2 ea. 3/4" x 12" hinge bolts
* 240” Open (20’) 109 lbs 20-4 F - 2 ea. 1 5/8" x 3/4" bolt on lugs
- 4 ea. 3/4” flat washers

-Width Sizes Indicate Opening Sizes

8' to 18' gates have one vertical brace,
20’ gates have two vertical braces

NOTE: Phoenix Fence recommends a section of fence for support on stand alone gate
posts for panels with 12’ and larger openings

Section F4 Page 2
