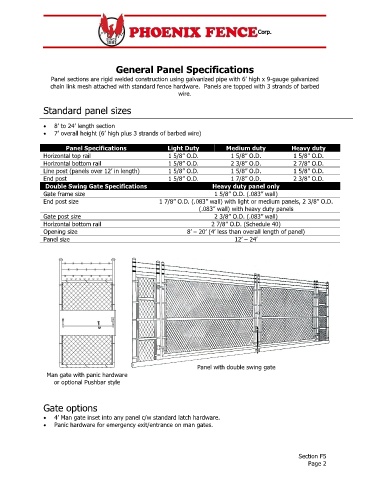

General Panel Specifications

Panel sections are rigid welded construction using galvanized pipe with 6’ high x 9-gauge galvanized
chain link mesh attached with standard fence hardware. Panels are topped with 3 strands of barbed
wire.

Standard panel sizes

 8’ to 24’ length section
 7’ overall height (6’ high plus 3 strands of barbed wire)

Panel Specifications Light Duty Medium duty Heavy duty
Horizontal top rail 1 5/8” O.D. 1 5/8” O.D. 1 5/8” O.D.
Horizontal bottom rail 1 5/8” O.D. 2 3/8” O.D. 2 7/8” O.D.
Line post (panels over 12’ in length) 1 5/8” O.D. 1 5/8” O.D. 1 5/8” O.D.
End post 1 5/8” O.D. 1 7/8” O.D. 2 3/8” O.D.
Double Swing Gate Specifications Heavy duty panel only
Gate frame size 1 5/8” O.D. (.083” wall)
End post size 1 7/8” O.D. (.083” wall) with light or medium panels, 2 3/8” O.D.
(.083” wall) with heavy duty panels
Gate post size 2 3/8” O.D. (.083” wall)
Horizontal bottom rail 2 7/8” O.D. (Schedule 40)
Opening size 8’ – 20’ (4’ less than overall length of panel)
Panel size 12’ – 24’

Panel with double swing gate
Man gate with panic hardware
or optional Pushbar style

Gate options
 4’ Man gate inset into any panel c/w standard latch hardware.
 Panic hardware for emergency exit/entrance on man gates.

Section F5
Page 2
