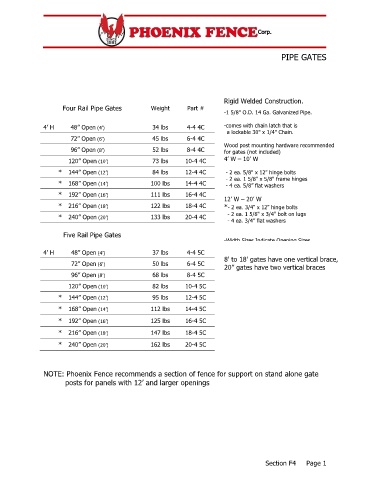

PIPE GATES

Rigid Welded Construction.
Four Rail Pipe Gates Weight Part #
-1 5/8" O.D. 14 Ga. Galvanized Pipe.

4’ H 48” Open (4’) 34 lbs 4-4 4C -comes with chain latch that is
a lockable 30" x 1/4" Chain.
72” Open (6‘) 45 lbs 6-4 4C
Wood post mounting hardware recommended
96” Open (8’) 52 lbs 8-4 4C for gates (not included)

120” Open (10’) 73 lbs 10-4 4C 4’ W – 10’ W
* 144” Open (12’) 84 lbs 12-4 4C - 2 ea. 5/8" x 12" hinge bolts
- 2 ea. 1 5/8" x 5/8" frame hinges
* 168” Open (14’) 100 lbs 14-4 4C - 4 ea. 5/8” flat washers
* 192” Open (16’) 111 lbs 16-4 4C
12’ W – 20’ W
* 216” Open (18’) 122 lbs 18-4 4C *- 2 ea. 3/4" x 12" hinge bolts
* 240” Open (20’) 133 lbs 20-4 4C - 2 ea. 1 5/8" x 3/4" bolt on lugs
- 4 ea. 3/4” flat washers

Five Rail Pipe Gates
-Width Sizes Indicate Opening Sizes
4’ H 48” Open (4’) 37 lbs 4-4 5C
8' to 18' gates have one vertical brace,
72” Open (6‘) 50 lbs 6-4 5C
20” gates have two vertical braces
96” Open (8’) 68 lbs 8-4 5C
120” Open (10’) 82 lbs 10-4 5C
* 144” Open (12’) 95 lbs 12-4 5C

* 168” Open (14’) 112 lbs 14-4 5C
* 192” Open (16’) 125 lbs 16-4 5C

* 216” Open (18’) 147 lbs 18-4 5C
* 240” Open (20’) 162 lbs 20-4 5C

NOTE: Phoenix Fence recommends a section of fence for support on stand alone gate
posts for panels with 12’ and larger openings

Section F4 Page 1
