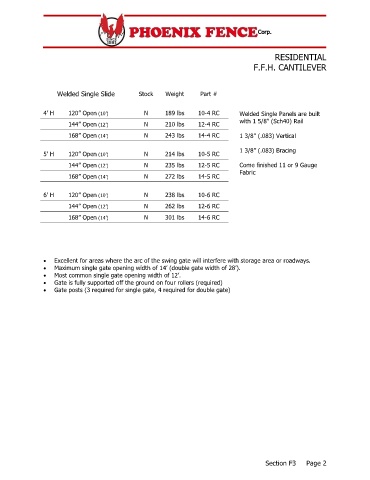

Page 85 - Phoenix Fence Catalouge

RESIDENTIAL
F.F.H. CANTILEVER

Welded Single Slide Stock Weight Part #

4’ H 120” Open (10’) N 189 lbs 10-4 RC Welded Single Panels are built
with 1 5/8" (Sch40) Rail
144” Open (12’) N 210 lbs 12-4 RC
168” Open (14’) N 243 lbs 14-4 RC 1 3/8” (.083) Vertical

1 3/8” (.083) Bracing
5’ H 120” Open (10’) N 214 lbs 10-5 RC

144” Open (12’) N 235 lbs 12-5 RC Come finished 11 or 9 Gauge
Fabric
168” Open (14’) N 272 lbs 14-5 RC

6’ H 120” Open (10’) N 238 lbs 10-6 RC

144” Open (12’) N 262 lbs 12-6 RC
168” Open (14’) N 301 lbs 14-6 RC

 Excellent for areas where the arc of the swing gate will interfere with storage area or roadways.
 Maximum single gate opening width of 14’ (double gate width of 28’).
 Most common single gate opening width of 12’.
 Gate is fully supported off the ground on four rollers (required)
 Gate posts (3 required for single gate, 4 required for double gate)

Section F3 Page 2
