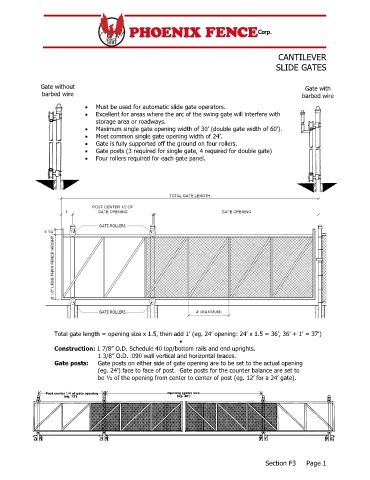

CANTILEVER
SLIDE GATES

Gate without Gate with
barbed wire barbed wire
 Must be used for automatic slide gate operators.
 Excellent for areas where the arc of the swing gate will interfere with
storage area or roadways.
 Maximum single gate opening width of 30’ (double gate width of 60’).
 Most common single gate opening width of 24’.
 Gate is fully supported off the ground on four rollers.
 Gate posts (3 required for single gate, 4 required for double gate)
 Four rollers required for each gate panel.

Total gate length = opening size x 1.5, then add 1’ (eg. 24’ opening: 24’ x 1.5 = 36’, 36’ + 1’ = 37’)

Construction: 1 7/8” O.D. Schedule 40 top/bottom rails and end uprights.
1 3/8” O.D. .090 wall vertical and horizontal braces.
Gate posts: Gate posts on either side of gate opening are to be set to the actual opening
(eg. 24’) face to face of post. Gate posts for the counter balance are set to
be ½ of the opening from center to center of post (eg. 12’ for a 24’ gate).

Section F3 Page 1
