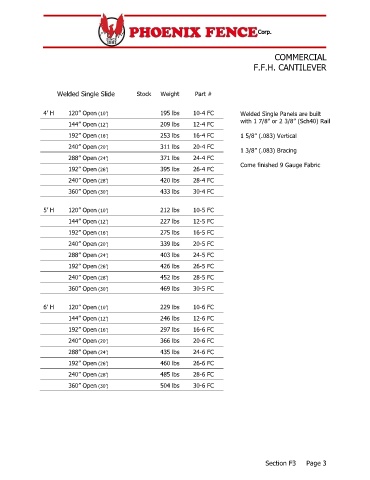

Page 86 - Phoenix Fence Catalouge

COMMERCIAL
F.F.H. CANTILEVER

Welded Single Slide Stock Weight Part #

4’ H 120” Open (10’) 195 lbs 10-4 FC Welded Single Panels are built
with 1 7/8" or 2 3/8” (Sch40) Rail
144” Open (12’) 209 lbs 12-4 FC
192” Open (16’) 253 lbs 16-4 FC 1 5/8” (.083) Vertical

240” Open (20’) 311 lbs 20-4 FC
1 3/8” (.083) Bracing
288” Open (24’) 371 lbs 24-4 FC
Come finished 9 Gauge Fabric
192” Open (26’) 395 lbs 26-4 FC

240” Open (28’) 420 lbs 28-4 FC
360” Open (30’) 433 lbs 30-4 FC

5’ H 120” Open (10’) 212 lbs 10-5 FC

144” Open (12’) 227 lbs 12-5 FC
192” Open (16’) 275 lbs 16-5 FC

240” Open (20’) 339 lbs 20-5 FC
288” Open (24’) 403 lbs 24-5 FC
192” Open (26’) 426 lbs 26-5 FC

240” Open (28’) 452 lbs 28-5 FC
360” Open (30’) 469 lbs 30-5 FC

6’ H 120” Open (10’) 229 lbs 10-6 FC

144” Open (12’) 246 lbs 12-6 FC
192” Open (16’) 297 lbs 16-6 FC

240” Open (20’) 366 lbs 20-6 FC
288” Open (24’) 435 lbs 24-6 FC
192” Open (26’) 460 lbs 26-6 FC

240” Open (28’) 485 lbs 28-6 FC
360” Open (30’) 504 lbs 30-6 FC

Section F3 Page 3
