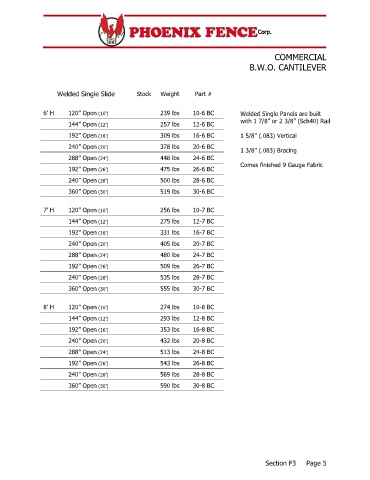

Page 88 - Phoenix Fence Catalouge
P. 88
COMMERCIAL
B.W.O. CANTILEVER
Welded Single Slide Stock Weight Part #
6’ H 120” Open (10’) 239 lbs 10-6 BC Welded Single Panels are built
with 1 7/8" or 2 3/8” (Sch40) Rail
144” Open (12’) 257 lbs 12-6 BC
192” Open (16’) 309 lbs 16-6 BC 1 5/8” (.083) Vertical
240” Open (20’) 378 lbs 20-6 BC
1 3/8” (.083) Bracing
288” Open (24’) 448 lbs 24-6 BC
Comes finished 9 Gauge Fabric
192” Open (26’) 475 lbs 26-6 BC
240” Open (28’) 500 lbs 28-6 BC
360” Open (30’) 519 lbs 30-6 BC
7’ H 120” Open (10’) 256 lbs 10-7 BC
144” Open (12’) 275 lbs 12-7 BC
192” Open (16’) 331 lbs 16-7 BC
240” Open (20’) 405 lbs 20-7 BC
288” Open (24’) 480 lbs 24-7 BC
192” Open (26’) 509 lbs 26-7 BC
240” Open (28’) 535 lbs 28-7 BC
360” Open (30’) 555 lbs 30-7 BC
8’ H 120” Open (10’) 274 lbs 10-8 BC
144” Open (12’) 293 lbs 12-8 BC
192” Open (16’) 353 lbs 16-8 BC
240” Open (20’) 432 lbs 20-8 BC
288” Open (24’) 513 lbs 24-8 BC
192” Open (26’) 543 lbs 26-8 BC
240” Open (28’) 569 lbs 28-8 BC
360” Open (30’) 590 lbs 30-8 BC
Section F3 Page 5
