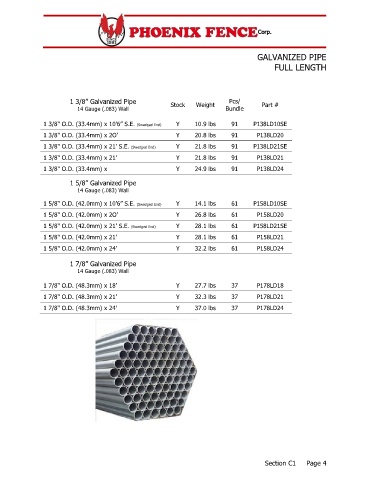

Page 23 - Phoenix Fence Catalouge

GALVANIZED PIPE
FULL LENGTH

1 3/8” Galvanized Pipe Stock Weight Pcs/ Part #
14 Gauge (.083) Wall Bundle

1 3/8" O.D. (33.4mm) x 10'6” S.E. (Swedged End) Y 10.9 lbs 91 P138LD10SE
1 3/8" O.D. (33.4mm) x 2O’ Y 20.8 lbs 91 P138LD20

1 3/8" O.D. (33.4mm) x 21’ S.E. (Swedged End) Y 21.8 lbs 91 P138LD21SE
1 3/8" O.D. (33.4mm) x 21’ Y 21.8 lbs 91 P138LD21
1 3/8" O.D. (33.4mm) x Y 24.9 lbs 91 P138LD24

1 5/8” Galvanized Pipe
14 Gauge (.083) Wall

1 5/8" O.D. (42.0mm) x 10’6” S.E. (Swedged End) Y 14.1 lbs 61 P158LD10SE
1 5/8" O.D. (42.0mm) x 2O’ Y 26.8 lbs 61 P158LD20
1 5/8" O.D. (42.0mm) x 21’ S.E. (Swedged End) Y 28.1 lbs 61 P158LD21SE
1 5/8" O.D. (42.0mm) x 21’ Y 28.1 lbs 61 P158LD21
1 5/8" O.D. (42.0mm) x 24’ Y 32.2 lbs 61 P158LD24

1 7/8” Galvanized Pipe
14 Gauge (.083) Wall

1 7/8" O.D. (48.3mm) x 18’ Y 27.7 lbs 37 P178LD18
1 7/8" O.D. (48.3mm) x 21’ Y 32.3 lbs 37 P178LD21

1 7/8" O.D. (48.3mm) x 24' Y 37.0 lbs 37 P178LD24

Section C1 Page 4
